High & Low Frequency Transformers
High and low frequency transformers with excellent power density, good EMC characteristics, low loss, and controlled temperature rise. Used across appliances, switching power supplies, telecom, and consumer electronics.
Engineered for power conversion.
- Excellent power density
- Good EMC performance
- Low loss across frequency range
- Controlled temperature rise
- High- and low-frequency architectures supported
Where this series is used.
Used in household appliances, switching power supplies, telecom power supplies, LCD drivers, and compact charging systems.

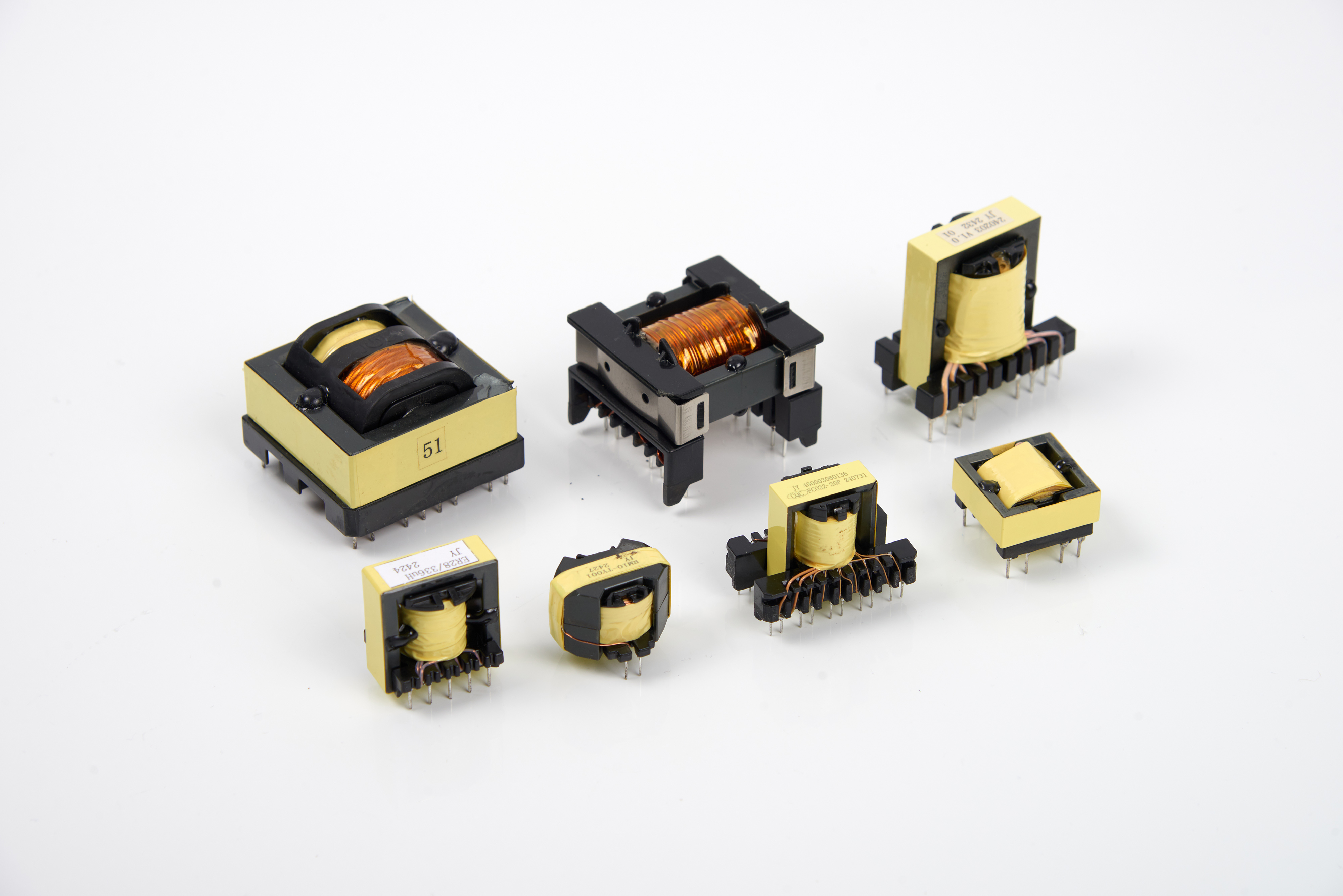

Representative product images.

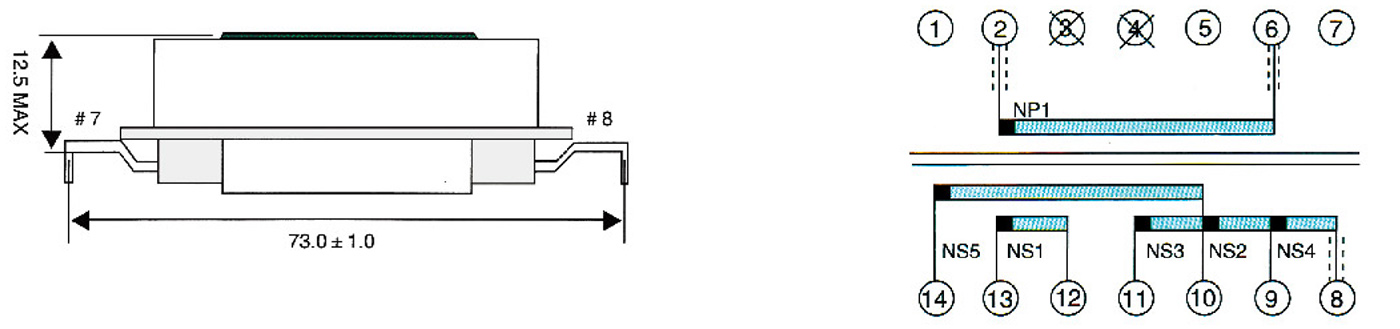

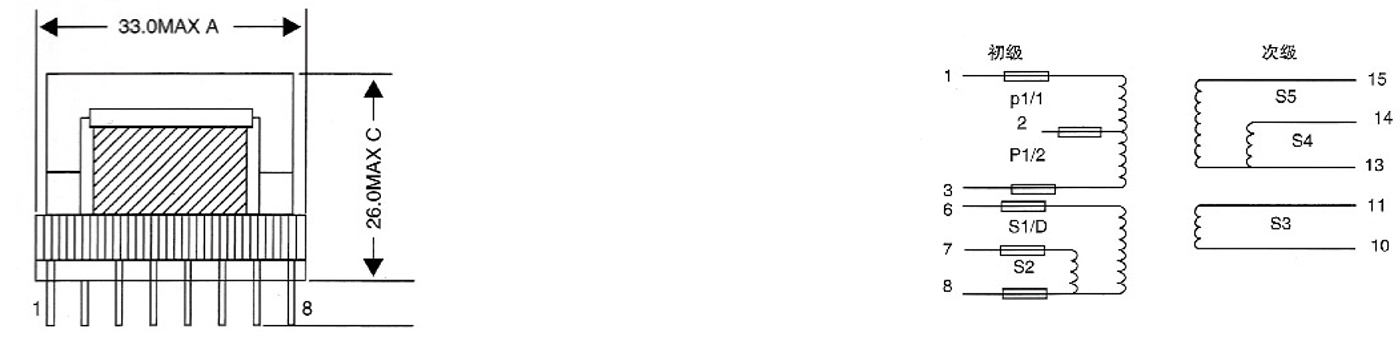

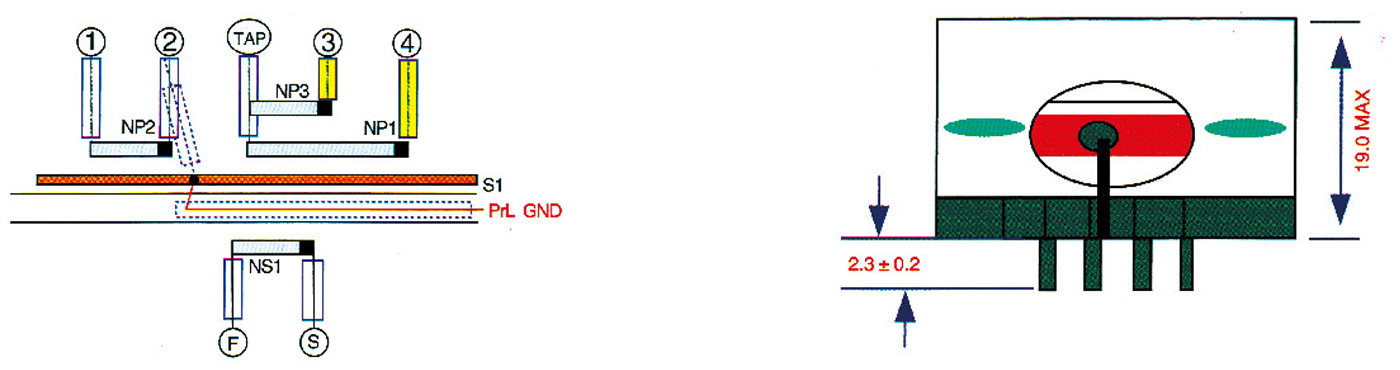

Schematic & Dimensions
Final dimensions vary by design and customer requirements.

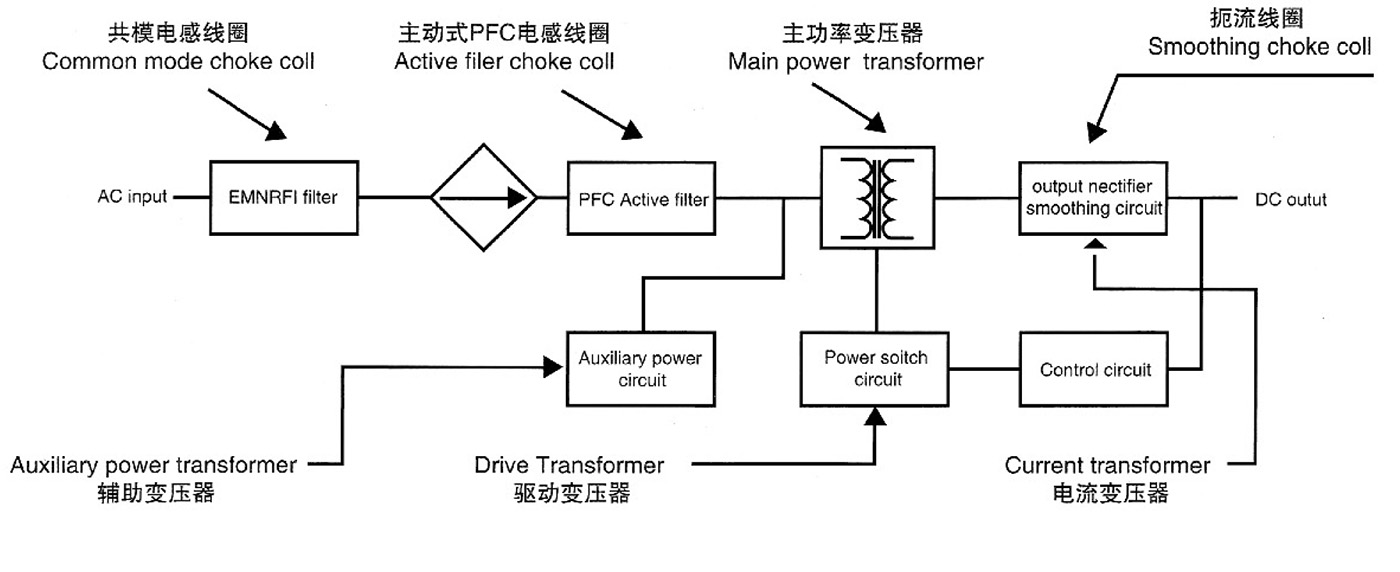

Typical Circuit Diagram
Specifications
Detailed specifications for this series are available during engineering review. Send us your requirements and our engineering team will reply with the relevant parameter ranges.
Design & Customization Options
Every project starts with engineering selection. Common customizable parameters are listed below; the full design surface is broader.
- Core material — ferrite, amorphous, selected nanocrystalline
- Winding structure and turns ratio
- Insulation system to project requirements
- Mounting and terminal configuration
- Encapsulation for thermal and mechanical robustness
- Sample and NPI support
From supplier qualification to final test.
- Supplier qualification and core material validation
- IQC, IPQC, and OQC inspection
- LCR characterization and hipot dielectric withstand testing
- Temperature-rise validation
- Reliability data shared under NDA
Where this series supports our customers.
Home Appliances & HVAC
Magnetic components for air conditioners, compressors, appliance power supplies, inverter drives, and high-volume OEM manufacturing programs.
Consumer Electronics Power Systems
Magnetic components supporting compact, efficient power conversion for consumer and household electronic systems.
Industrial Power Supply
Transformers, inductors, and chokes for industrial-grade switching power supplies.
Send us your specifications for engineering review.
A qualified magnetics engineer will reply within one business day with sample availability, technical assessment, and indicative pricing as appropriate to your request.
Let our magnetics engineers help.
Send your specs and we will respond within one business day with a technical assessment, sample availability, and indicative pricing.
