Nanocrystalline Magnetic Material
Selected nanocrystalline core capabilities for compact, high-frequency magnetic designs — combining on-site nanocrystalline processing where applicable with qualified external core sourcing and material validation.
Engineered for power conversion.
- High permeability — suited to compact, high-frequency designs
- Strong impedance characteristics for EMC/EMI applications
- Suited to common-mode chokes, isolation transformers, and current sensors
- Selected nanocrystalline core capabilities with qualified external core sourcing
Where this series is used.
Used in EMC common-mode chokes, isolation transformers, current sensors, high-frequency transformers, and compact magnetic components across EV charging, renewable energy, energy storage, and industrial systems.

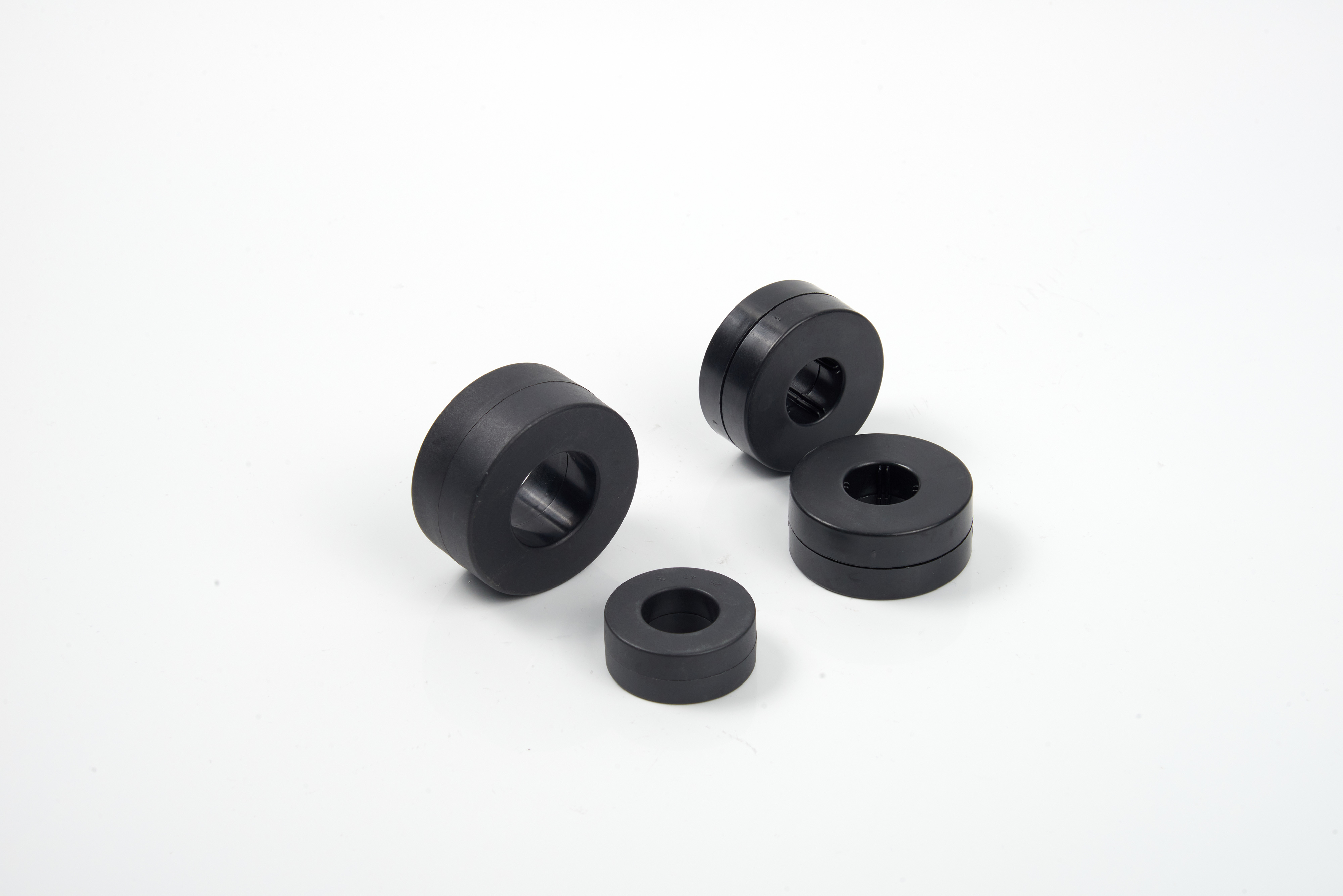

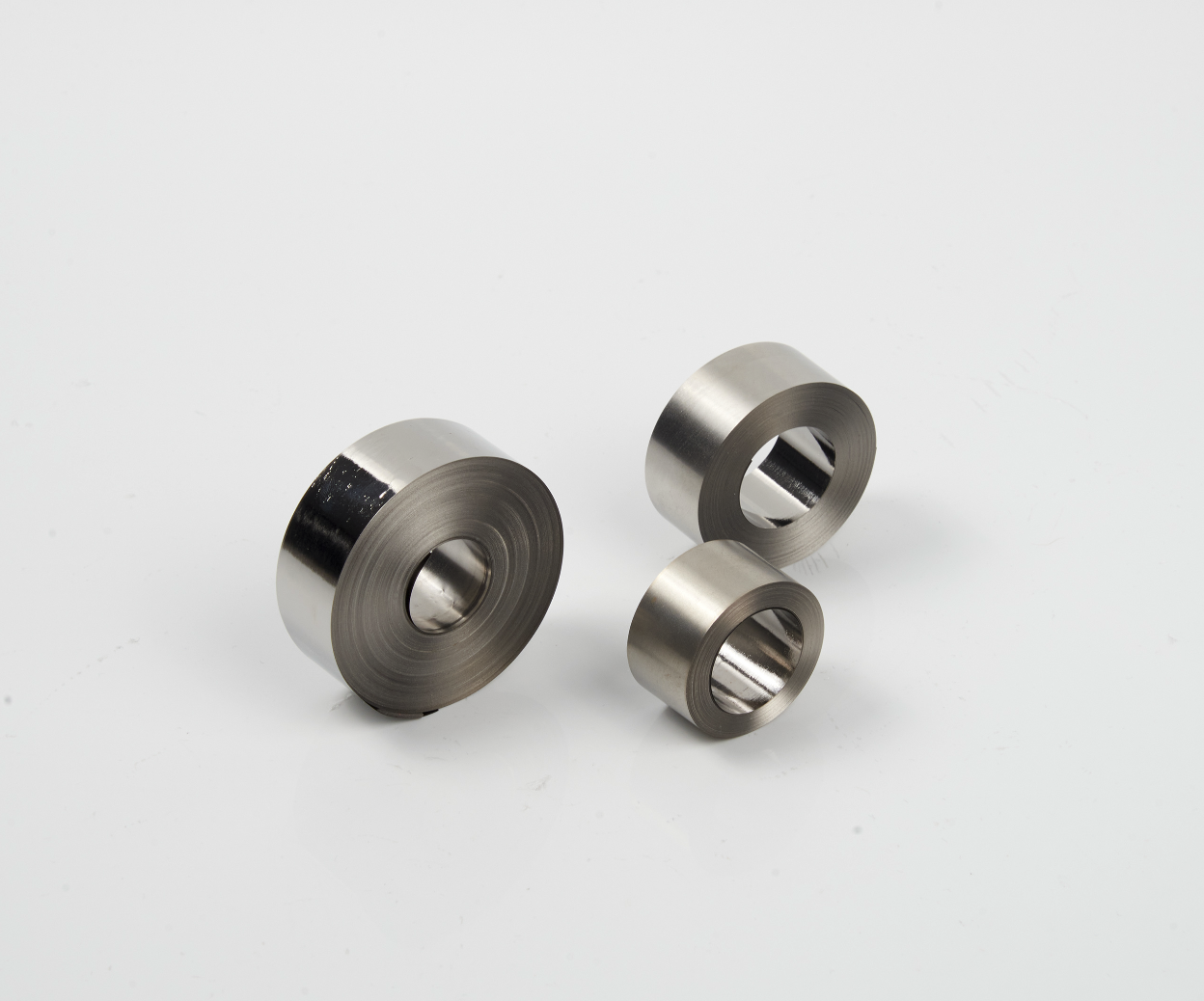

Representative product images.
Reference data and representative specifications.
Final specifications are confirmed at order. Additional ratings and dimensions are available during engineering review.
| Basic magnetic parameters | Fe-based nanocrystalline |
|---|---|
| Saturation flux density Bs (T) | 1.2 |
| Saturation magnetostriction λs (PPM) | <3 |
| Electrical resistivity ρ (μΩ·cm) | 80 |
| Curie temperature Tc (°C) | 570 |
| Residual flux density Br (T) | 0.6–0.7 |
| Initial permeability μi (Gs/Oe) | >80,000 |
| Maximum permeability μm (Gs/Oe) | >260,000 |
| Coercivity Hc (A/mm) | <1.5 |
Reference values from existing common-mode choke documentation. Detailed specifications and dimensional drawings are available during engineering review.
Design & Customization Options
Every project starts with engineering selection. Common customizable parameters are listed below; the full design surface is broader.
- Core selection — selected nanocrystalline capabilities plus qualified external sources
- Core dimensions to project requirements
- Custom mounting, shielding, and casing
- Integration with custom winding and insulation
- Sample and NPI support
From supplier qualification to final test.
- Supplier qualification and core material validation
- Incoming and in-process inspection
- Impedance characterization across operating frequency
- Reliability validation by project
Where this series supports our customers.
EV Charging Infrastructure
Magnetics for AC/DC charging piles, DC fast charging modules, and reliable power conversion.
Photovoltaic / Solar Inverters
Magnetic components for string and central inverter architectures.
Energy Storage Systems
Magnetics for BESS PCS, bidirectional converters, and auxiliary power.
Smart Grid & Power Electronics
Magnetics for grid-tied converters, power quality systems, and smart-grid power electronics.
Send us your specifications for engineering review.
A qualified magnetics engineer will reply within one business day with sample availability, technical assessment, and indicative pricing as appropriate to your request.
Let our magnetics engineers help.
Send your specs and we will respond within one business day with a technical assessment, sample availability, and indicative pricing.
