Rectangular PFC Inductor
Rectangular-form PFC inductors with high saturation flux density, excellent frequency and DC bias characteristics, and stable thermal behavior.
Engineered for power conversion.
- High saturation flux density
- Excellent frequency characteristic
- Excellent DC bias characteristic
- Stable temperature behavior
Where this series is used.
Used in household appliances, photovoltaic inverters, and medical equipment.

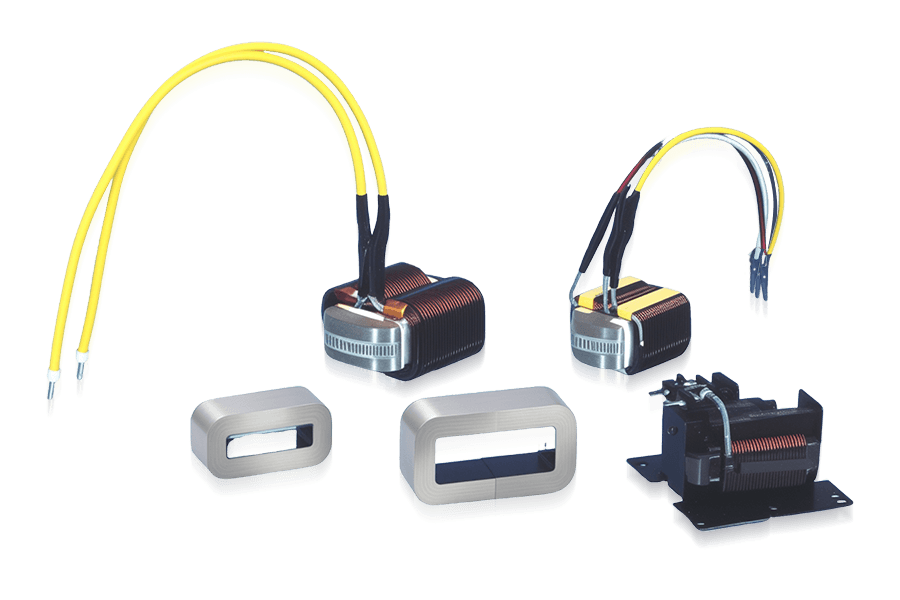

Representative product images.

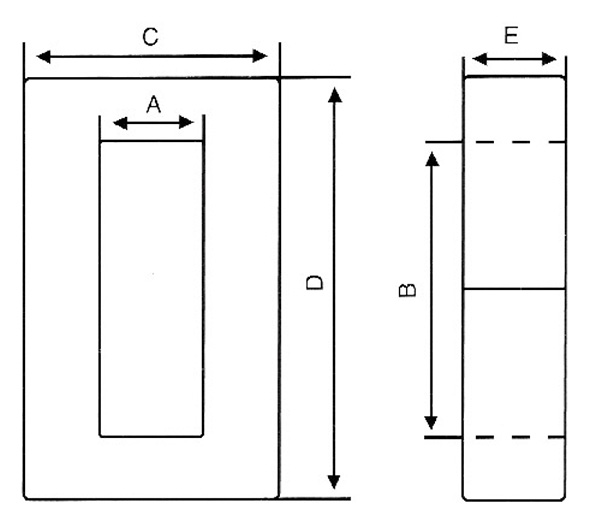

Schematic & Dimensions
Final dimensions vary by design and customer requirements.
Reference data and representative specifications.
Final specifications are confirmed at order. Additional ratings and dimensions are available during engineering review.
| Item | A — window width (mm) | B — window length (mm) | C — core width (mm) | D — core width (mm) | E — core width (mm) | L — magnetic length (mm) | Ac — effective core area (cm²) |
|---|---|---|---|---|---|---|---|
| JYCNTCC-6.3 | 11.0 | 33.0 | 31.0 | 53.0 | 20.0 | 13.1 | 1.6 |
| JYCNTCC-8 | 13.0 | 30.0 | 35.0 | 52.0 | 20.0 | 13.2 | 1.8 |
| JYCNTCC-10 | 13.0 | 40.0 | 35.0 | 62.0 | 20.0 | 15.4 | 1.8 |
| JYCNTCC16A | 13.0 | 40.0 | 35.0 | 62.0 | 25.0 | 15.1 | 2.3 |
| JYCNTCC16B | 13.0 | 50.0 | 35.0 | 72.0 | 25.0 | 16.9 | 2.3 |
| JYCNTCC-20 | 13.0 | 50.0 | 35.0 | 72.0 | 30.0 | 17.5 | 2.7 |
| JYCNTCC-25 | 15.0 | 56.0 | 41.0 | 82.0 | 25.0 | 19.6 | 2.7 |
| JYCNTCC-32 | 15.0 | 56.0 | 41.0 | 82.0 | 30.0 | 20.0 | 3.2 |
| JYCNTCC-40 | 15.0 | 56.0 | 41.0 | 82.0 | 35.0 | 19.9 | 3.7 |
| JYCNTCC-50 | 20.0 | 70.0 | 52.0 | 102.0 | 25.0 | 24.9 | 3.3 |
| JYCNTCC-63 | 20.0 | 70.0 | 52.0 | 102.0 | 30.0 | 25.3 | 3.9 |
| JYCNTCC-80 | 20.0 | 70.0 | 52.0 | 102.0 | 40.0 | 25.4 | 5.2 |
| JYCNTCC-100 | 20.0 | 70.0 | 52.0 | 102.0 | 45.0 | 25.0 | 5.9 |
| JYCNTCC-125 | 25.0 | 83.0 | 63.0 | 121.0 | 35.0 | 30.2 | 5.4 |
| JYCNTCC-160 | 25.0 | 83.0 | 63.0 | 121.0 | 40.0 | 28.6 | 6.5 |
| JYCNTCC-200 | 25.0 | 83.0 | 63.0 | 121.0 | 50.0 | 29.8 | 7.8 |
Final dimensions vary by design and customer requirements. Additional ratings available on request.
