High-Frequency PFC Inductor
High-frequency PFC inductors with high saturation magnetic flux density and excellent DC bias performance — suited to home appliances, EV systems, communications, photovoltaic, and industrial power supplies.
Engineered for power conversion.
- High saturation magnetic flux density
- Excellent DC bias performance
- Stable across operating frequency
- Compatible with high-density PFC topologies
Where this series is used.
Used in home appliances, new energy vehicles, communication power supplies, photovoltaic inverters, and industrial power supplies.

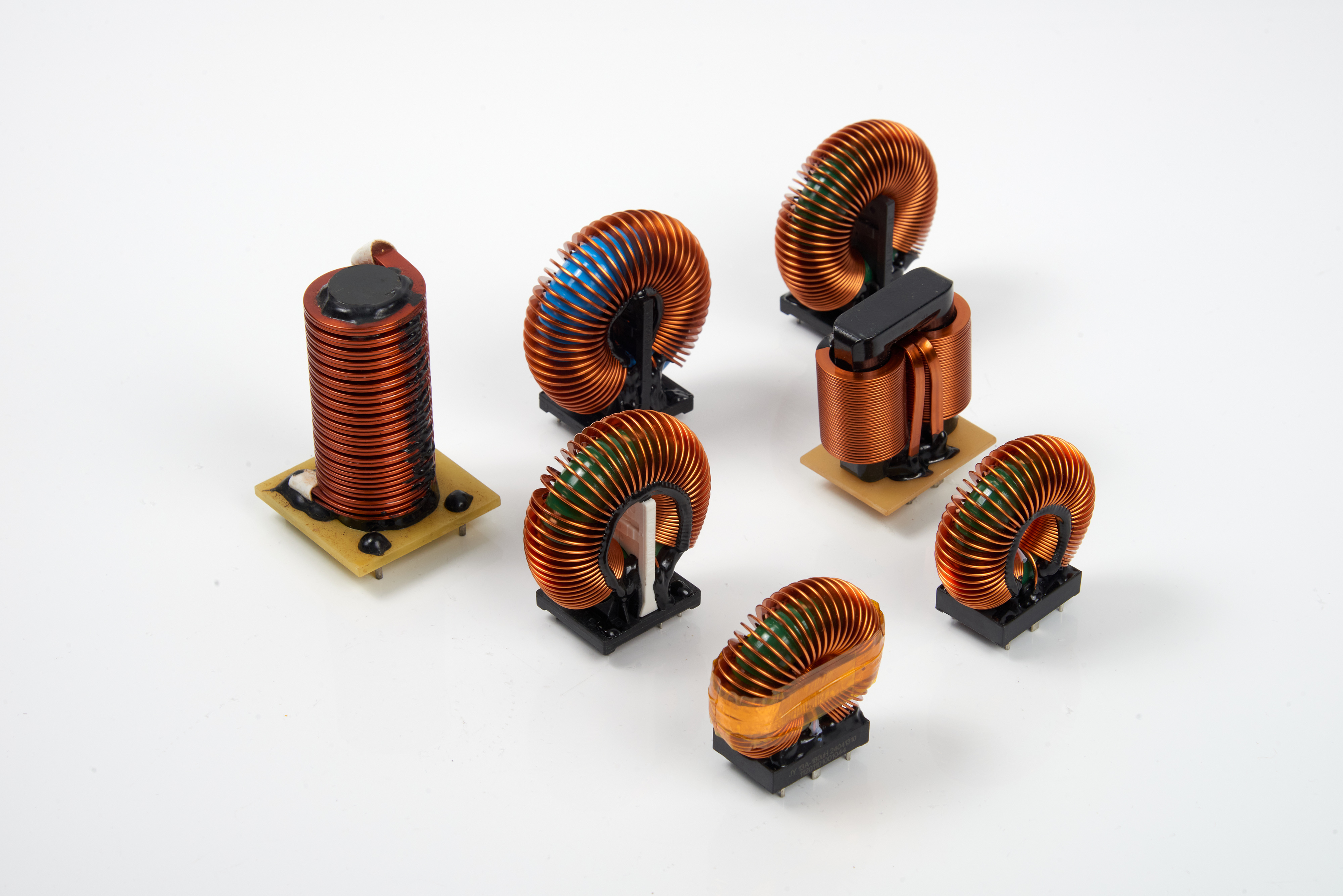

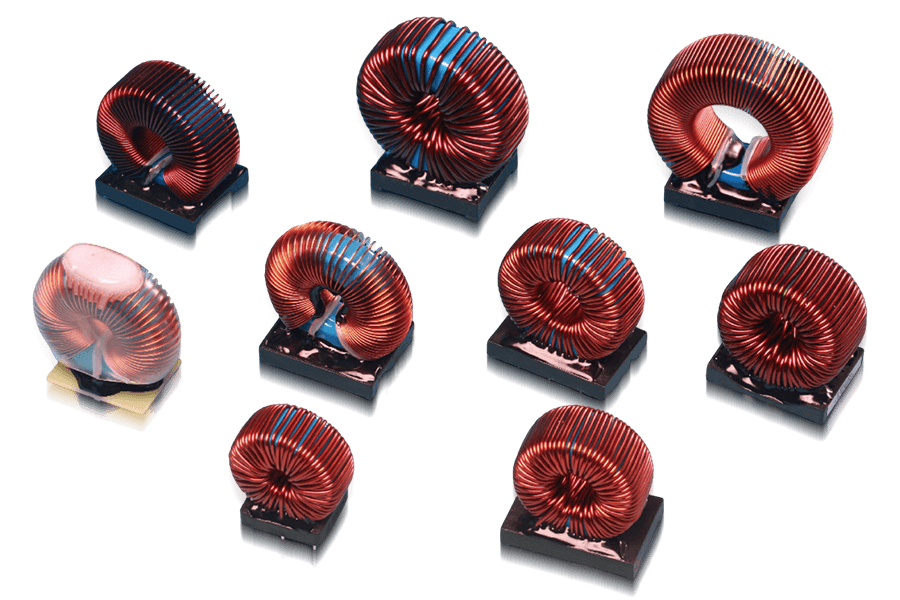

Representative product images.
Reference data and representative specifications.
Final specifications are confirmed at order. Additional ratings and dimensions are available during engineering review.
| Item | Rated current | Rated inductance | L (mm, max) | H (mm, max) | W (mm, max) |
|---|---|---|---|---|---|
| 10A / 300 µH | DC 10 A | 300 µH min. | 60.0 | 58.0 | 29.0 |
| 10A / 400 µH | DC 10 A | 400 µH min. | 50.0 | 49.0 | 28.5 |
| 10A / 430 µH | DC 10 A | 430 µH min. | 54.0 | 60.0 | 30.0 |
| 13A / 500 µH | DC 13 A | 500 µH min. | 54.0 | 53.0 | 35.0 |
| 13A / 500 µH | DC 13 A | 500 µH min. | 60.0 | 58.0 | 35.0 |
| 13A / 500 µH | DC 13 A | 500 µH min. | 68.0 | 67.0 | 30.0 |
| 16A / 300 µH | DC 16 A | 300 µH min. | 58.0 | 60.0 | 37.0 |
| 16A / 430 µH | DC 16 A | 430 µH min. | 70.0 | 73.0 | 35.0 |
| 18A / 250 µH | DC 18 A | 250 µH min. | 58.0 | 61.0 | 37.0 |
| 20A / 350 µH | DC 20 A | 350 µH min. | 73.0 | 76.0 | 36.0 |
Additional ratings available on request.
