Amorphous Active PFC Inductor
Amorphous-core active PFC inductors with high saturation flux density, low high-frequency loss, excellent frequency characteristics, stable temperature behavior, and good DC superposition characteristics.
Engineered for power conversion.
- High saturation flux density
- Low high-frequency loss
- Excellent frequency characteristics
- Stable temperature characteristics
- Good DC superposition characteristics
- Suited to high-power energy storage and inverter power supplies
Where this series is used.
Used in DC inverter air conditioners and solar active PFC stages.

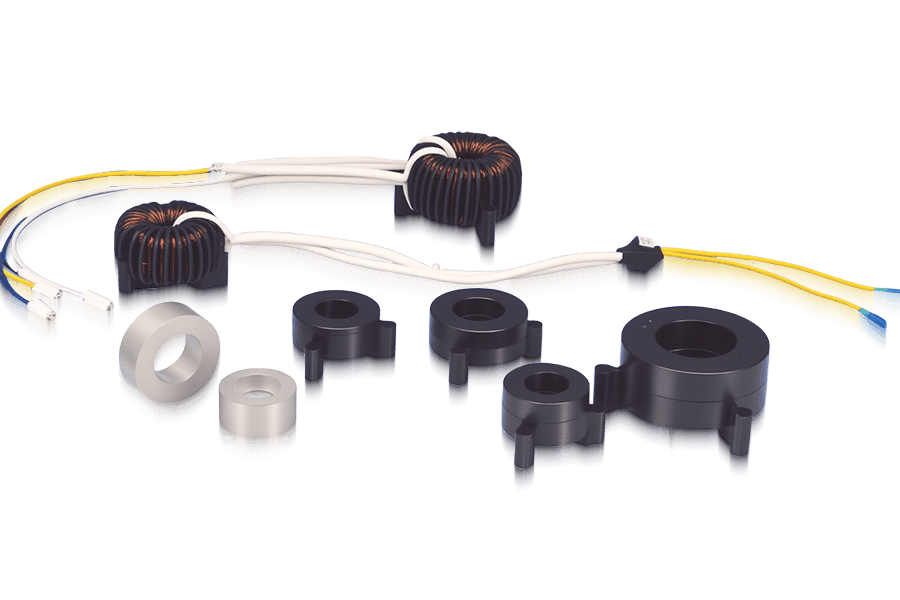

Representative product images.

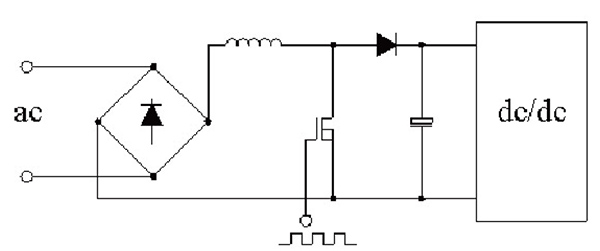

Typical Circuit Diagram
Reference data and representative specifications.
Final specifications are confirmed at order. Additional ratings and dimensions are available during engineering review.
| Item | OD (mm) | ID (mm) | HT (mm) | Air gap (mm) | Rated current (A) |
|---|---|---|---|---|---|
| JYCNT-583420C | 58 | 34 | 20 | 4 | 15 |
| JYCNT-583430C | 58 | 34 | 30 | 4 | 20 |
| JYCNT-603420C | 60 | 34 | 20 | 4 | 20 |
| JYCNT-603425C | 60.0 | 34.0 | 25.0 | 5.5 | 25.0 |
| JYCNT-704025C | 70.0 | 40.0 | 25.0 | 5.5 | 30.0 |
| JYCNT-704030C | 70.0 | 40.0 | 30.0 | 5.5 | 35.0 |
| JYCNT-805040C | 80.0 | 50.0 | 40.0 | 6.5 | 40.0 |
| JYCNT-1006040C | 100.0 | 60.0 | 40.0 | 6.5 | 50.0 |
| JYCNT-1006050C | 100.0 | 60.0 | 50.0 | 6.5 | 60.0 |
| JYCNT-1308050C | 130 | 80 | 50 | 8 | 70 |
Additional ratings available on request. Final dimensions vary by design and customer requirements.
